What is covered in this article?
- Overview
- Creating a KML or KMZ file
- Adding your New Layer to Enquiry Tracker
- Displaying Layers
- How-To Do Boundaries in Map Layers
- How-To Drop Custom Pins in Map Layers
Overview
You can now upload your own layer files to Enquiry Tracker so you can view them as overlays on your geographic Maps.
These layers are uploaded as kml (Keyhole Markup Language) files for viewing – files such as boundaries lines, zone or catchment areas or even a list of other schools in the area.
Creating a Map Layer (KML or KMZ file)
You can create a KML or KMZ file using Google Earth or Google Maps. Follow the steps below to create a KML/KMZ file using Google Maps.
- Go to https://mymaps.google.com/
- Create an account or login using your google credentials
- Create a new map
- Select the Draw a Line tool
- Using the tool to draw a polygon on your map by clicking and moving to the next point
- To close the polygon, click on the first point
- Name your map
- Choose the border color, thickness and color transparency
- Save it
- Click the 3 dots next to your layer
- Select Export Layer
- Choose KMZ/KML
- Choose KML or KMZ (KMZ can support multiple layers and icons)
- Download the file
Adding a New Map Layer to Enquiry Tracker
As a School Admin, log in to Enquiry Tracker and follow the steps below

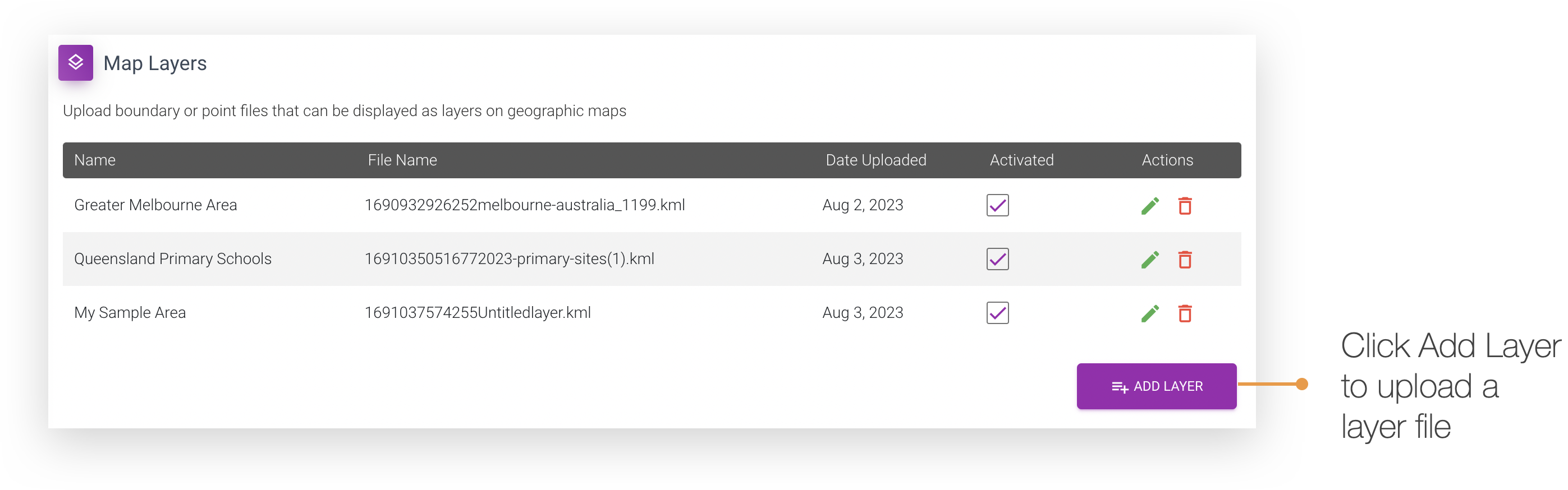

- Go to Admin> Map Layers
- Click Add Layer button

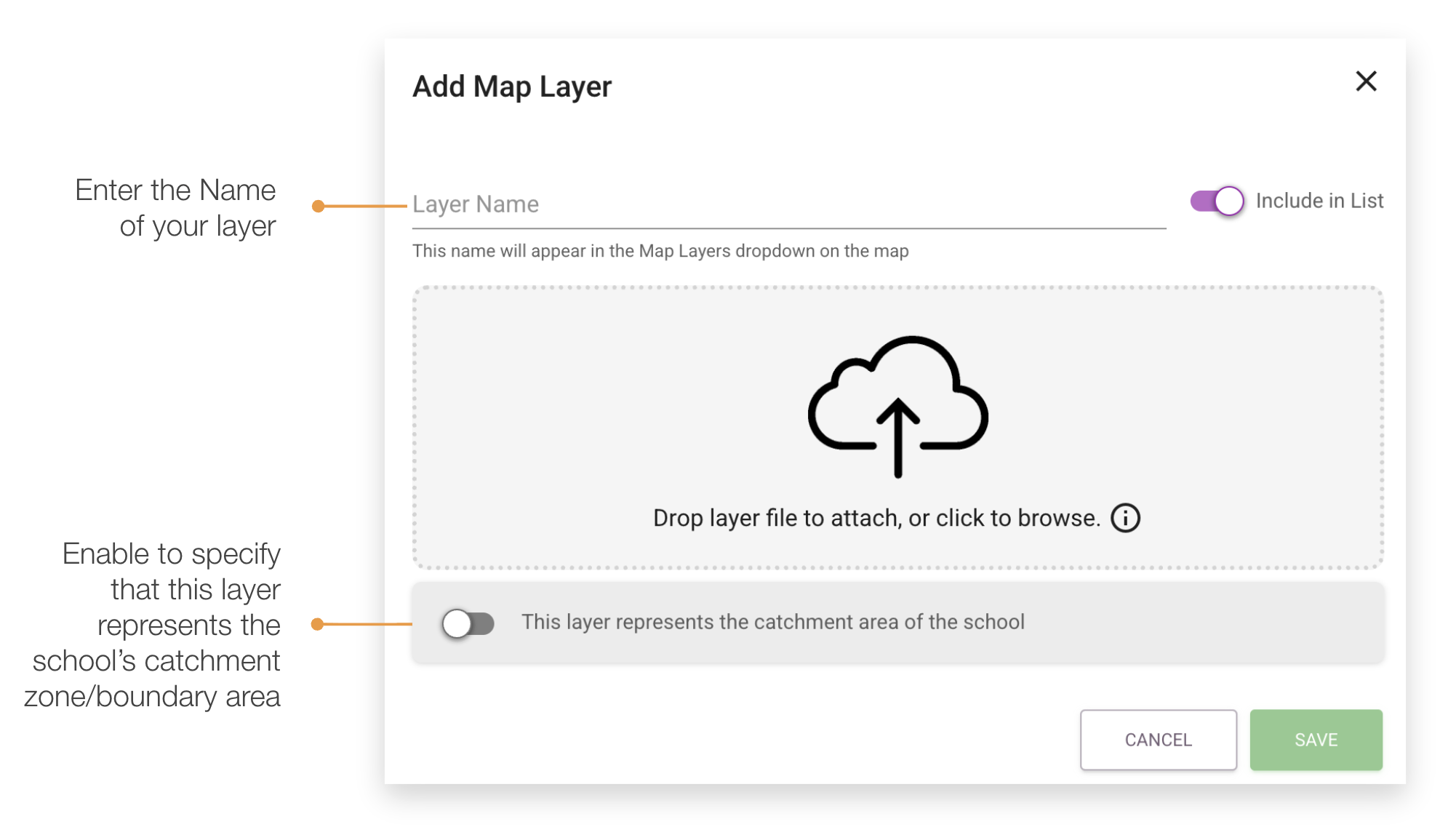

- Enter in the information in the dialog, including the desired name of the layer
- Import your KML file
- Enable Include in List - this will allow it to appear on your geographic map
- Click Save
Displaying Layers
To turn on and off layers:
- Go to Analytics> Geographic
- Click the New Layers button (note this will only appear if you have at least 1 active layer)

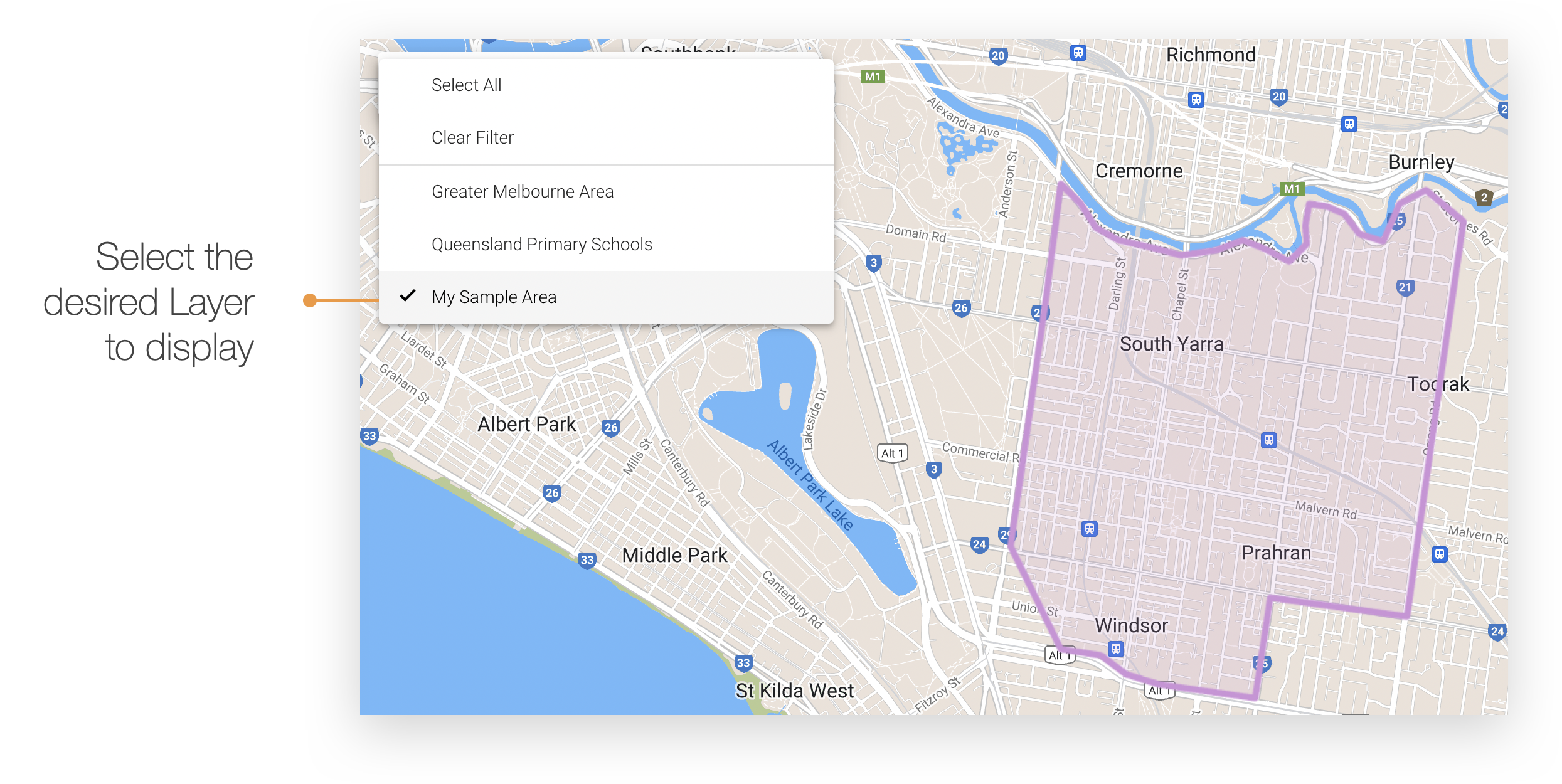

- Select your desired Layer and it will appear on your map
| Note: Layers will be retained between sessions and are user specific. |
How-To Do Boundaries in Map Layers
